RightMark Audio Analyzer test report

Testing device [ASIO] Creative Sound Blaster ASIO 192
Sampling mode 24-bit, 192 kHz
Interface ASIO
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.4 PRO


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -0.1 dB / -0.1 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.03, -0.09
Excellent
Noise level, dB (A)
-108.9
Excellent
Dynamic range, dB (A)
109.2
Excellent
THD, %
0.00298
Excellent
THD + Noise, dB (A)
-87.9
Good
IMD + Noise, %
0.00480
Excellent
Stereo crosstalk, dB
-87.6
Excellent
IMD at 10 kHz, %
0.00639
Excellent
General performance

Very good

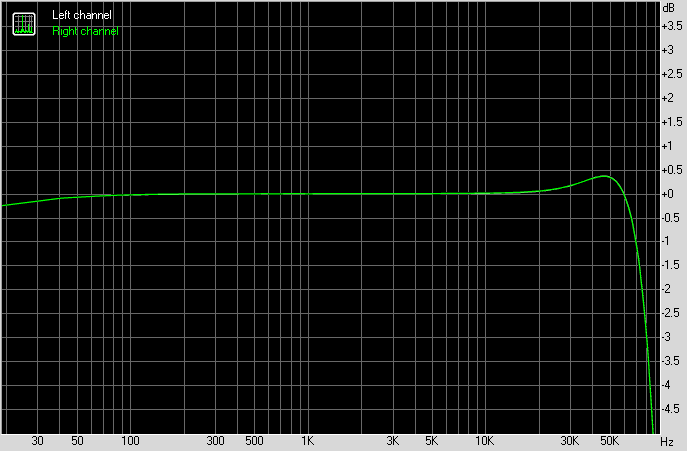

Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.24, +0.06
-0.24, +0.06
From 40 Hz to 15 kHz, dB
-0.09, +0.03
-0.09, +0.03

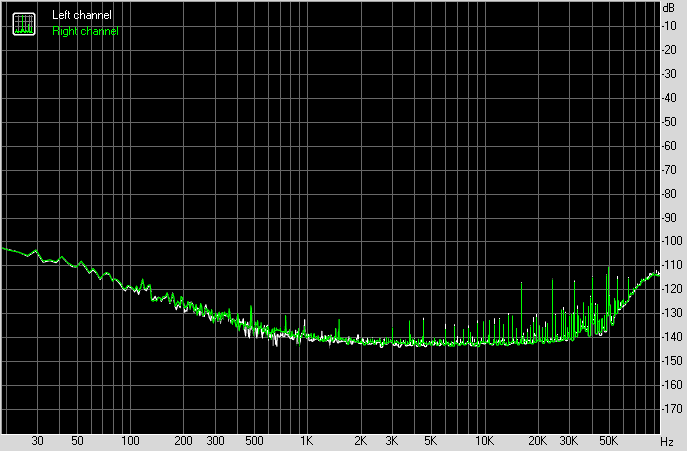

Noise level

Spectrum graph


Left
Right
RMS power, dB
-98.6
-98.2
RMS power (A-weighted), dB
-109.0
-108.9
Peak level, dB FS
-68.0
-67.8
DC offset, %
+0.0
+0.0

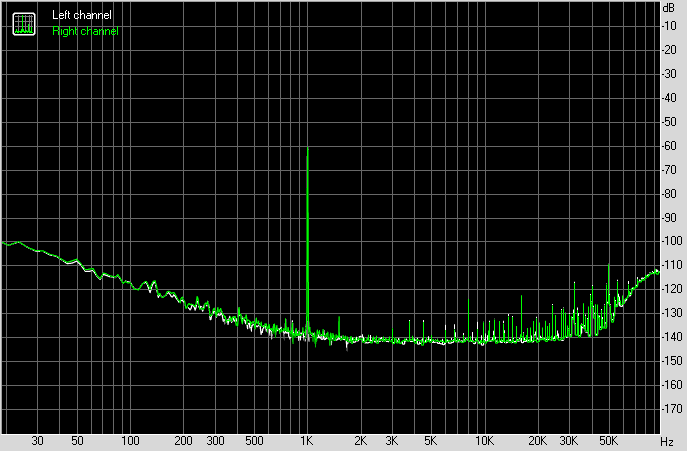

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+99.1
+98.7
Dynamic range (A-weighted), dB
+109.4
+109.0
DC offset, %
+0.00
+0.00

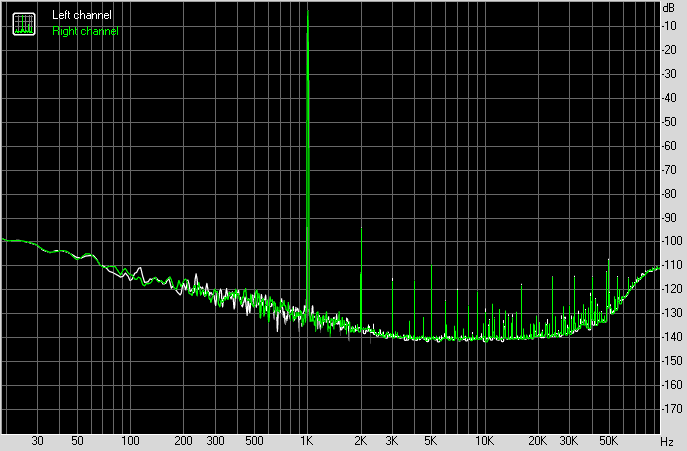

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00303
0.00293
THD + Noise, %
0.00473
0.00474
THD + Noise (A-weighted), %
0.00408
0.00393

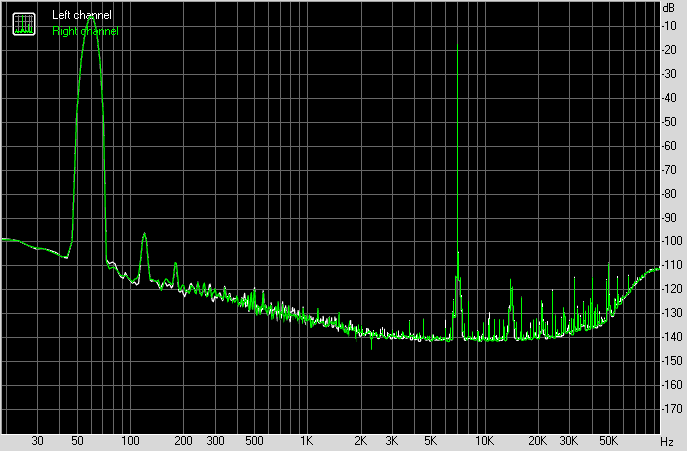

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.00499
0.00461
IMD + Noise (A-weighted), %
0.00228
0.00214



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-77
-80
Crosstalk at 1000 Hz, dB
-87
-87
Crosstalk at 10000 Hz, dB
-67
-67

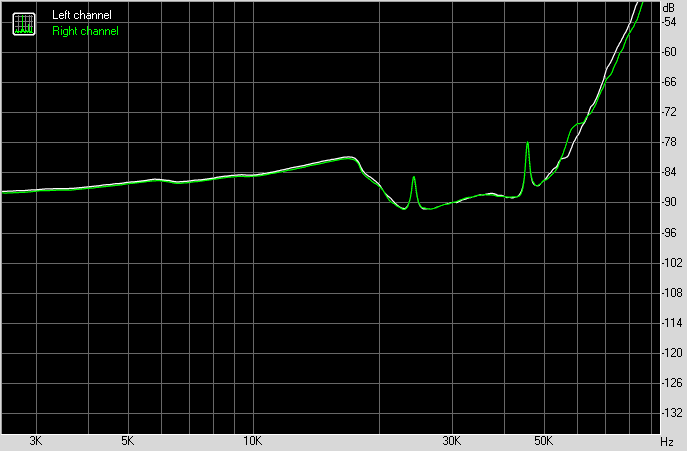

IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.00508
0.00492
IMD + Noise at 10000 Hz,
0.00601
0.00584
IMD + Noise at 15000 Hz,
0.00840
0.00806
